Filter Press or Horizontal Vacuum Belt Filter Which One is Right for Your Operations
Choosing the right filtration equipment can significantly impact the efficiency and cost-effectiveness of your mining or industrial operation. Two common options are the filter press and the horizontal vacuum belt filter. Each has strengths and limitations that suit different operational needs. This post breaks down key differences to help engineers and mining companies decide which fits their processes best.
How Filter Presses Work and Their Advantages
A filter press uses pressure to separate solids from liquids. It consists of a series of plates covered with filter cloths. Slurry is pumped into the press, and pressure forces the liquid through the cloth, leaving a solid cake behind.
Key benefits of filter presses:
High solids capture: Filter presses can achieve very low moisture content in the cake, often below 15%, which reduces disposal volume.
Versatility: They handle a wide range of slurry types, including those with fine particles or high solids concentration.
Batch operation: This allows for precise control of filtration cycles and cake thickness.
Filter presses are common in mining operations where dewatering tailings or recovering valuable minerals is critical. For example, copper mines often use filter presses to produce dry tailings that are easier to transport and store.

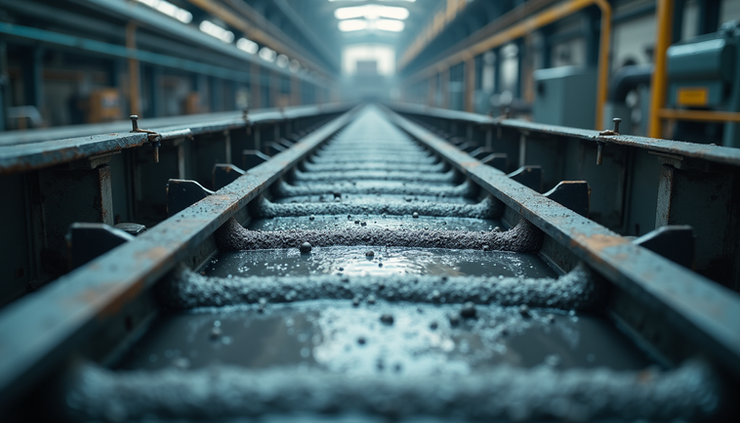

How Horizontal Vacuum Belt Filters Work and Their Advantages
Horizontal vacuum belt filters operate continuously. Slurry is spread over a moving porous belt, and vacuum suction pulls liquid through the belt, leaving solids on top. The solids cake is then scraped off for disposal or further processing.
Advantages of horizontal vacuum belt filters include:
Continuous operation: Ideal for large volumes of slurry requiring steady processing.
Lower labor intensity: Automation reduces manual intervention compared to batch systems.
Lower capital cost: Generally less expensive upfront than filter presses.
These filters work well in operations where the slurry has lower solids content or where continuous processing is preferred. For example, coal preparation plants often use vacuum belt filters to handle large volumes of slurry efficiently.
Comparing Operational Considerations
When deciding between these two filtration methods, consider the following:
Moisture content requirements: Filter presses generally produce drier cakes, which can reduce disposal costs.
Throughput needs: Vacuum belt filters handle larger volumes continuously, suitable for high-capacity plants.
Slurry characteristics: Filter presses tolerate a wider range of particle sizes and solids concentrations.
Space and maintenance: Vacuum belt filters require more floor space but less maintenance complexity.
Capital and operating costs: Filter presses have higher initial costs and labor demands but may save money on disposal and water recovery.
For example, a mining operation with limited space and a need for very dry tailings might choose a filter press despite higher upfront costs. Conversely, a plant processing large volumes of low-solid slurry might prefer a vacuum belt filter for its continuous operation and lower capital investment.
Making the Right Choice for Your Operation
Selecting between a filter press and a horizontal vacuum belt filter depends on your specific operational goals. Evaluate your slurry type, volume, moisture targets, space constraints, and budget. Both technologies have proven track records in mining and industrial applications.
Start by testing your slurry with both methods if possible, or consult with equipment suppliers who can provide case studies relevant to your mineral type. The right filtration equipment will improve your process efficiency, reduce waste handling costs, and support sustainable operations.
Next step: Reach out to filtration experts to discuss your operation’s unique needs and explore pilot testing options. This hands-on approach ensures you invest in the equipment that delivers the best long-term results.
